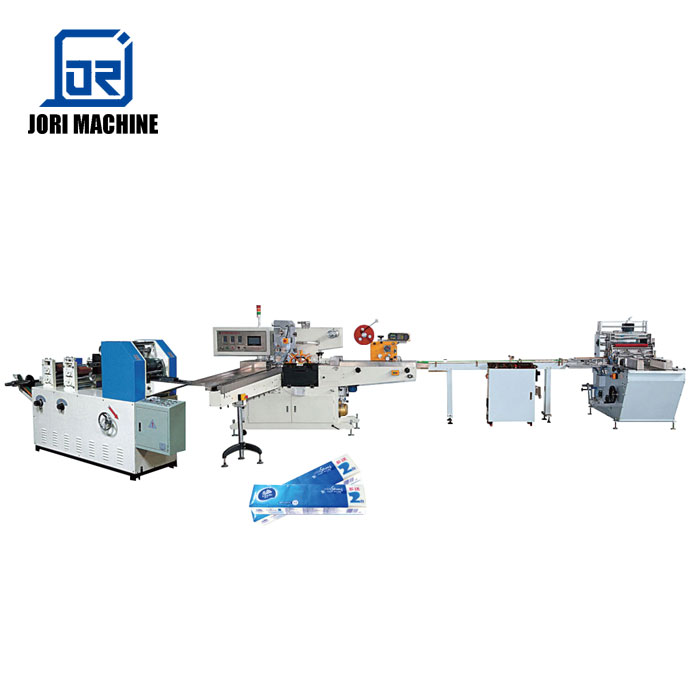

This Handkerchief / Pocket Tissue Paper Making Production Line includes the following machines:

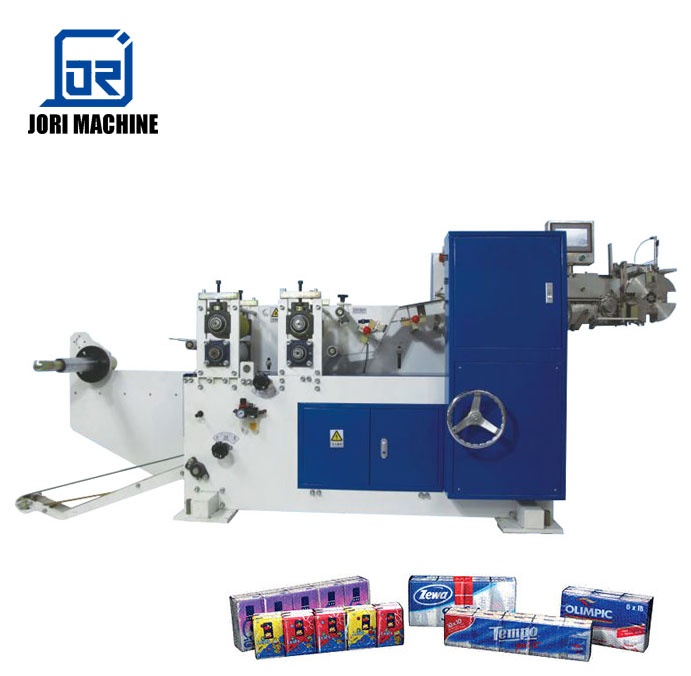

1. Fully Automatic Handkerchief /Pocket Tissue Paper Folding Machine with auto counting & separator

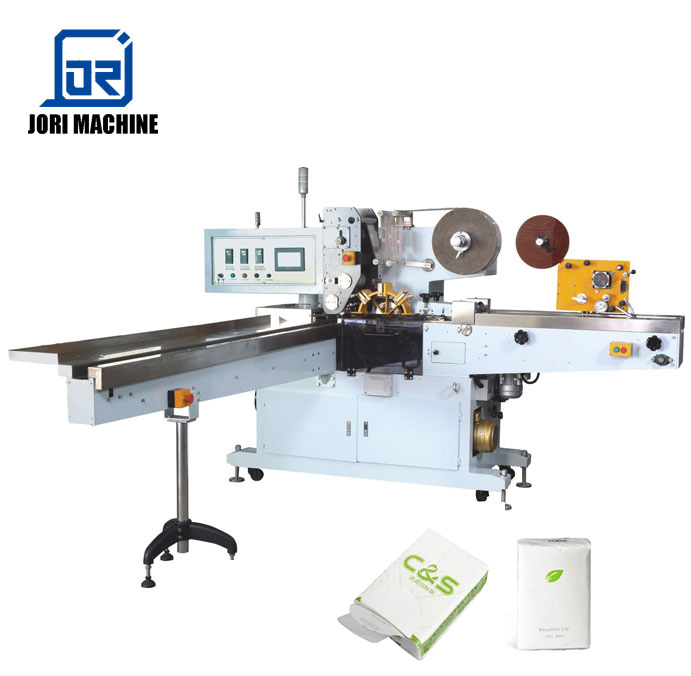

2. Fully Automatic Single Bag Handkerchief /Pocket Tissue Paper Packing Machine
3. Fully Automatic Handkerchief /Pocket Tissue Paper Bundling Machine

Features of Handkerchief / Pocket Tissue Paper Making Production Line:

• Finished Sizes：(150-330)L*(70-150)W*(20-84)H
• Max. width saw jumbo roll：210mm
• Whole liner speed(10piece/bag, 10bags/bundling)：800m/min, 80bags/min，8bundling/min
• The Equipment has an independent and flexible operating system and linkage running.
• Easy to change the manufacturing specification, and convenient product many kinds of production.

Function of Handkerchief / Pocket Tissue Paper Making Production Line:

1. Adopt Delta PLC to control the machine running and operate it on the touch screen.
2. Adopt a complete trouble alarm and tracing system, easy to fix the error.
3. Transmission systems adopt advanced frequency control.
4. An intelligent separate system achieves auto transfer and reduces the cost for the customer.
5. Adopt the gear speed rate system, fix the tissue hit the pushing rod when the machine put down the tissue to achieve production efficiently.
6. Adopt an independent running control system, no need to change the packing machine, it is highly versatile.
7. Adopt adsorption folding, to keep the good shape of the finished product can control the specification precisely.

Specification of Handkerchief / Pocket Tissue Paper Making Production Line:
