Face Mask Making Machine

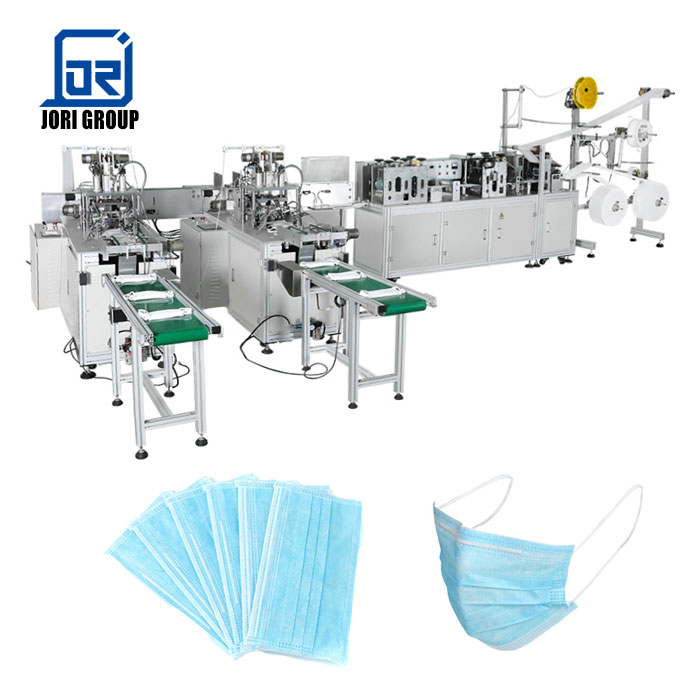

  1. Mask making machine is mainly composed of one plane mask body machine, one plane mask film feeder, and two plane mask outer ear belt machines.
  2. The cloth is automatically folded and hemmed automatically. The nose bridge strips are cut to length and then imported into the cloth to make the mask body. The mask body is sent to the two headsets outside the mask by a film feeder.
  3. The ultrasonic is used to weld and shape the earband, and the counting mask is automatically conveyed and discharged, and enters the packaging process.



Model JR-M2L
Machine Frame Aluminum-based
Machines Size 6500(L)*4000(W)*2000(H)
Specifications 175*95mm(Adults)
Design Speed 130 pcs/min
Production Speed 100 pcs/min
Mask Level 3-4 layers
Productivity 95%
Power 9KW
Min Air Press Requirement 0.6 Mpa
Gas Consumption 300L/min
Machine Weight About 1800KG
Ground Load ≤500KGM㎡
