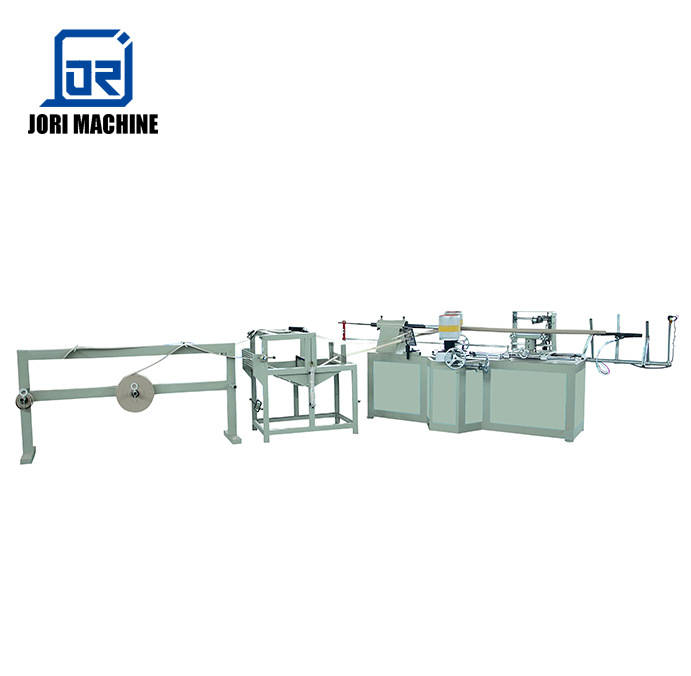

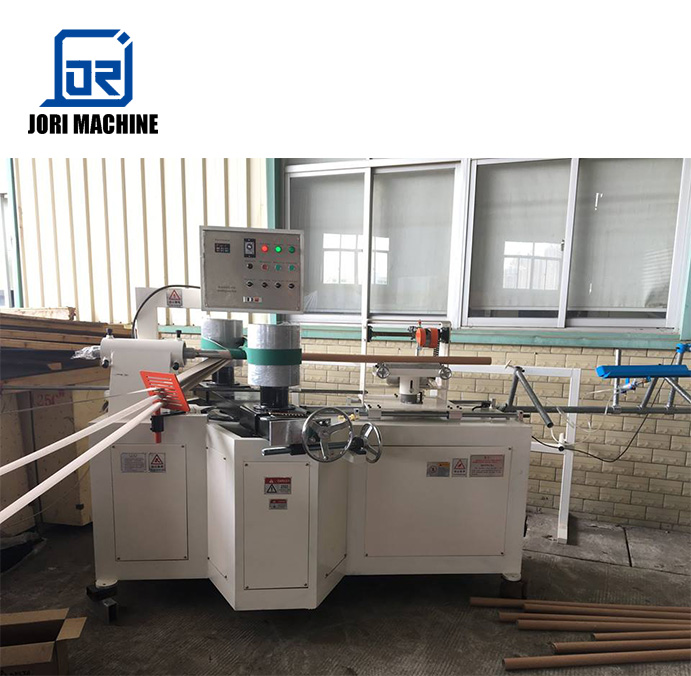

Kraft Paper Core Tube Making Machine

Features of Kraft Paper Core Tube Making Machine:

  • Inverter control to ensure the accuracy of the length of the paper tube.
  • Automated online on the plastic, paper tube, and cut-off.
  • Product diameter and length can be customized according to customer needs.
  • Products are widely used in toilet paper.
  • Plastic film and textile industry.
  • The machine has a reasonable design. Easy Operation and convenient maintenance.
Send Inquiry
Call by Whatsapp

Features of Kraft Paper Core Tube Making Machine:

  1. Inverter control to ensure the accuracy of the length of the paper tube.
  2. Automated online on the plastic, paper tube, and cut-off.
  3. Product diameter and length can be customized according to customer needs.
  4. Products are widely used in toilet paper.
  5. Plastic film and textile industry.
  6. The machine has a reasonable design. Easy Operation and convenient maintenance.

Specification of Kraft Paper Core Tube Making Machine:

Design speed 20 m / min
Steady speed 15 ~ 18 m / minutes
Kraft paper width 50 ~ 70mm
Paper tube diameter 25mm ~ 100mm (Can be customized)
Paper tube layers 2 ~ 5 layers (Can be customized)
The shortest winding length 750mm
Minimum core thickness 1mm
Maximum core thickness 3mm
Paper grams amount: 200-400 g / m
Reel Length: adjustable (maximum: 2.8 m)
Defect rate: ≤ 2%
Voltage 380V 50HZ
Power 4.1KW
Overall dimension: Host: 2950x1700x1800mm (L × W × H)
Jerry device:1250x850x1200mm (L × W × H)
Weight: 1500KGS
