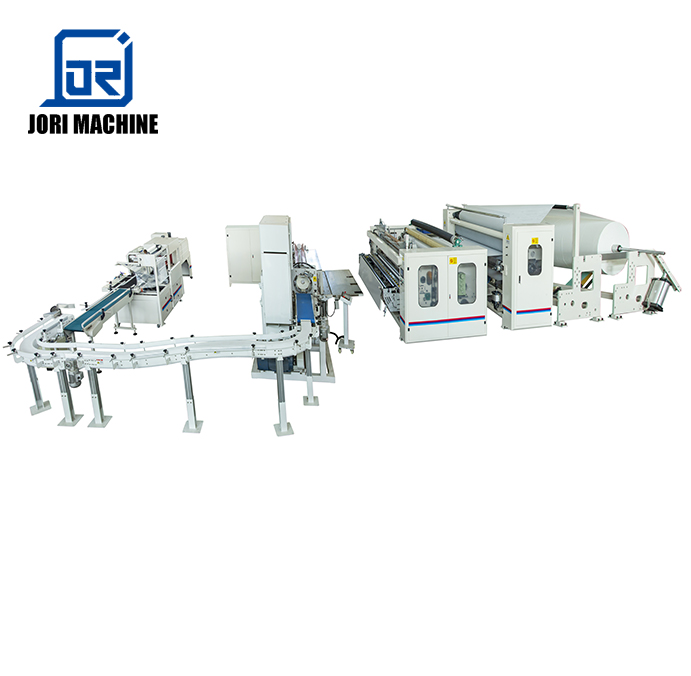

This Garage / Maxi Roll Paper Making Production Line includes the following machines:

1. Fully automatic garage / maxi roll paper rewinding machine ( Two sets of dots to dots glue laminated parts for making kitchen towel paper  & Two colors surface printing system)
2. Automatic garage / maxi paper roll bandsaw cutting machine with deck transfer
3. Automatic garage / maxi paper roll shrinking & packing machine

Features of Garage / Maxi Roll Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Highest Level):

Automatic High-Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
The machine has a core feeding unit and can do both with and without the core. Raw material from the jumbo roll after full embossing or edge embossing, then perforation, end cutting, and spray the tail glue become a log. Then it can work with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through the touch screen, the whole process is automatic, easy to operate, lowers the man cost. And Our machine can be special-made according to clients’ requirements.

Function of Garage / Maxi Roll Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Highest Level):

• 395mm Diameter Dots to Dots Glue Laminated Device.
• This machine is for making toilet paper rolls, the whole structure is wall-type, which make the machine run stable at high speed, and noiseless.
• Perforation distance is adjustable to meet different distance needs.
• Automatic core feeding system, automatically pushing the log after rewinding, then rewinding the new log again.
• Automatic edge-trimming, glue spraying, and sealing synchronously at one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and saving the cost.
• Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on the touch screen.
• Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have a bigger range.
• Two wall-type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
• Adopt jogging switches for wearing the paper, easy and safe to operate.

Specification of Garage / Maxi Roll Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Highest Level):
