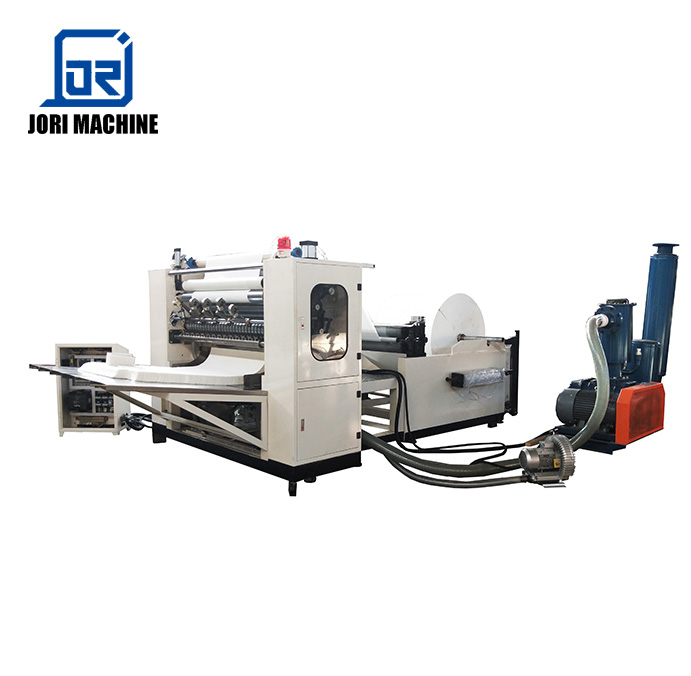

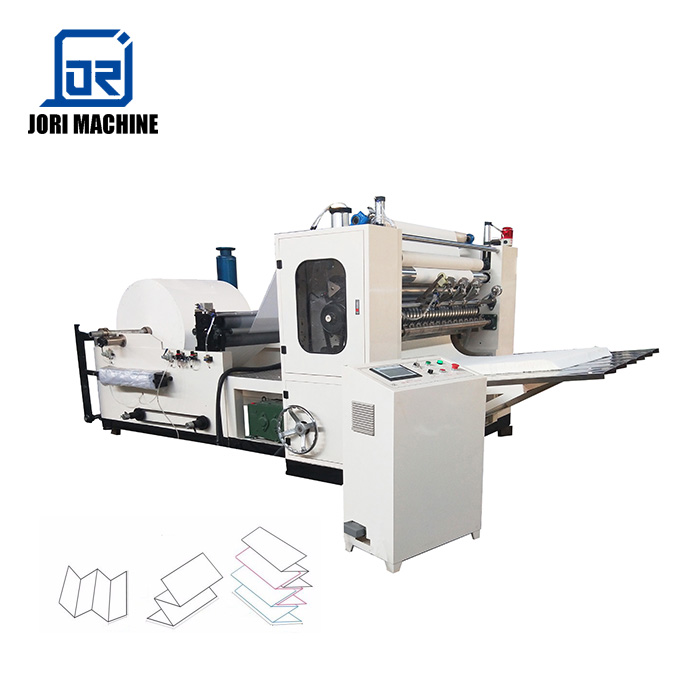

5 Lines N Fold Hand Towel Paper Tissue Making Machine

Feature:
1. Folding style: N Fold
2. Steel to steel roller embossing
3. Speed: 80-100m/min
4. Automatic ink marked counting

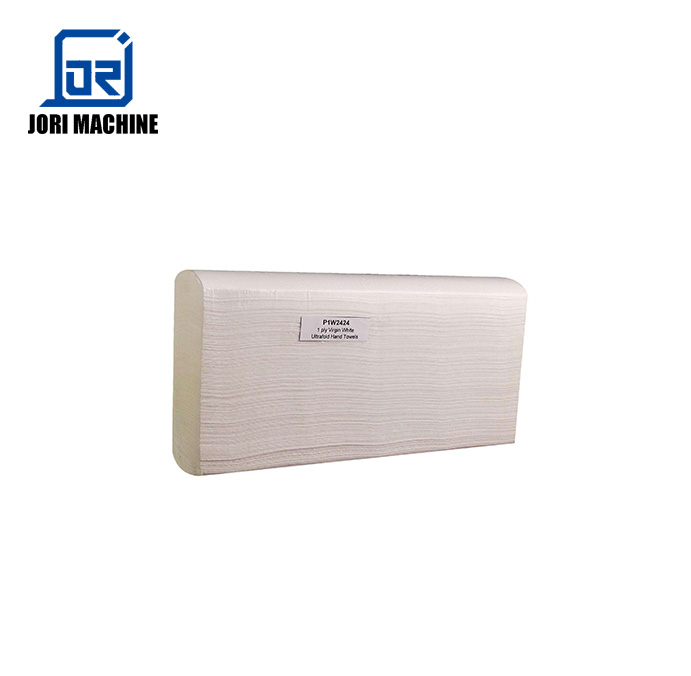

N folding hand towel machine process paper material after embossing, cut off, interfold become N fold, The products are widely used in hotels, offices, and kitchen and so on, convenient health. The machine can fold, slit, and cut, with high speed, and output orderliness.



Features of N Fold Hand Towel Paper Tissue Folding Machine :
N folding hand towel machine process paper material after embossing, cut off, interfold become N fold, The products are widely used in hotels, offices, and kitchen and so on, convenient health. The machine can fold, slit, and cut, with high speed, and output orderliness.

Function of N Fold Hand Towel Paper Tissue Folding Machine :

  • Production speed: 60-100 m/min.
  • Steel to steel embossing.
  • Pneumatic broken paper automatic separation, convenient wear paper.
  • Using synchronous belt transmission ratio is accurate, and low noise.
  • Base paper adapts range, 33-45/㎡ (single ply).
  • To be ordered two layers of glue lamination (optional).

Specification of N Fold Hand Towel Paper Tissue Folding Machine :

Model 2L 3L 4L 5L
Max jumbo roll width 480mm 690mm 990mm 1150mm
Production speed 80~100m/min
Finished product size open 230*230mm, fold 230*76.2mm
Folding type Vacuum suction “N” fold
One set of embossing Steel to steel
Two back jumbo roll stands Pneumatic lifting of the jumbo roll
Counting Automatic ink marked
Program controller PLC computer controller
Total power 11kw 15kw 15kw 22kw
Dimensions: 4000*1700*2000mm
Weight: About2000 kg
