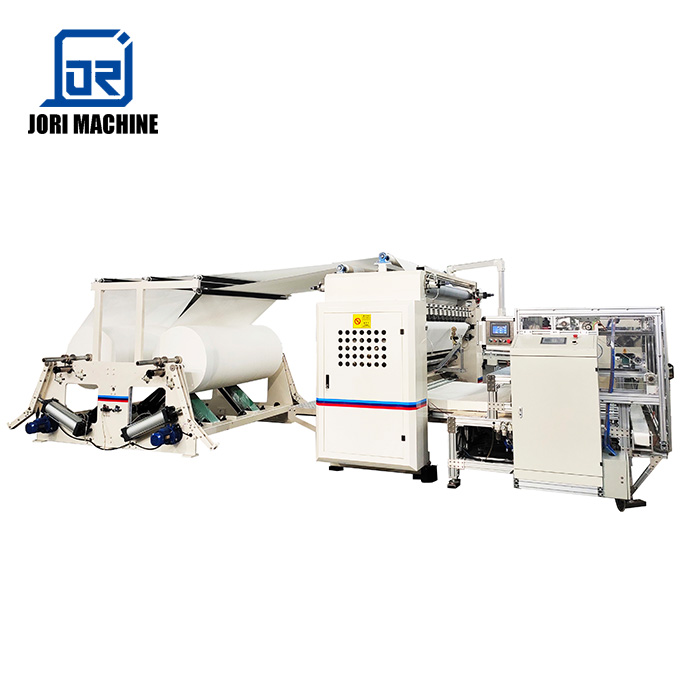

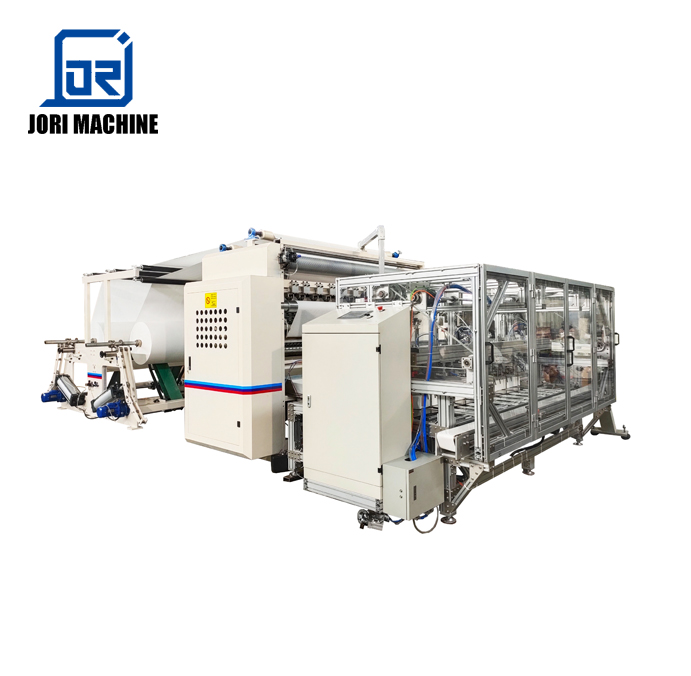

10 Lines V Fold Facial Tissue Paper Folding Machine

Feature:
1. Folding style: V Fold
2. Steel to steel roller embossing
3. Speed: 80-100m/min
4. Automatic ink marked counting

Box-drawing facial tissue machine is to cut a good plate of paper folded into the process “V” type of paper processing equipment, machinery, and mechanical hand using vacuum assisted folding principle.



Features of V Fold Facial Tissue Paper Folding Machine :

Box-drawing facial tissue machine is to cut a good plate of paper folded into the process “V” type of paper processing equipment, machinery, and mechanical hand using vacuum assisted folding principle.

Function of V Fold Facial Tissue Paper Folding Machine :

  • Automatic counting sub-bit row of output;
  • Screw shear knives, vacuum folding;
  • Variable speed unwinding can be adapted to the base level of tension;
  • Controlled by PLC computer programming, pneumatic, on paper, easy to operate;
  • Frequency conversion motor to save energy;
  • Product width can be adjusted to facilitate marketing;
  • Supporting paper, paper pattern edge rolling device, the pattern is clear, flexible and market demand. (Pattern selected by the guests)

Specification of V Fold Facial Tissue Paper Folding Machine :

Max. Jumbo Roll Width 2L

480mm

3L

680mm

4L

880mm

5L

1080mm

6L

1280mm

7L

1480mm

10L

2080mm

14L

2800mm

Production speed (60-100)m/min
Unfold Size 180*(130-210)mm 190*(130-210)mm 200*(130-210)mm
Folding Size 90*(130-210)mm 95*(130-210)mm 100*(130-210)mm
